Isosonic Timber floor

The ISOSONIC TIMBERFLOOR provides safeguards against failure with 'pre completion testing'.

Calculate your materials requirement by clicking here

• Site tested performance far in excess of test requirements
• 1 hour fire proof
• Simple installation reducing workmanship errors
• Integral flanking sound insulation, eliminating difficult edge strips
• Detailed installation for floor, ceiling, down lighters and partitions- aiding the builder and specifier

SITE TEST PERFORMANCE COMPARABLE TO R.D. STANDARDS

• A high performance, low cost and simple to install system.
• Provides a unique integral barrier to flanking sound transmission which is the predominant cause of test failures.
• ISORUBBER BASE is suitable for the direct application of timber and laminate floors without a board platform.

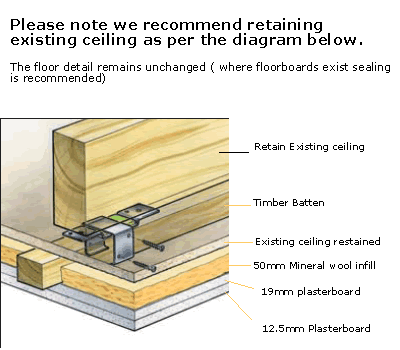

Below shows a detailed set up of isosonic rubber mat and hangers in place. We would recommend keeping the existing ceiling in place if you can.

Other possible hanger options

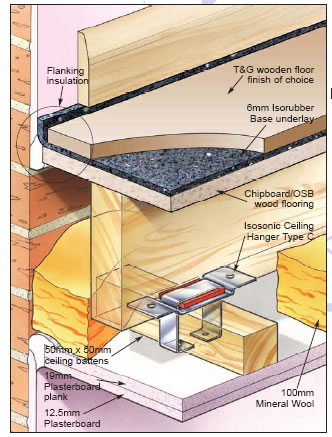

Ceiling Hanger type A For minimal loss in ceiling height 5mm lowering of ceiling	Ceiling Hanger type B For adjustable ceiling height Hangers can be made to suit the exact ceiling level requirements	Ceiling Hanger type C For retained ceilings Allows the new sound insulating fire protective ceiling to be installed without the removal of the existing ceiling

Calculate your materials requirement by clicking here

Isosonic Ceiling Hangers

a) The number of ceiling hangers required per square metre of floor will depend on the geometry of the room. Regular rectangular rooms require approximately 2.5 hangers per square metre of floor area.

b) Spacing of the ceiling hangers should not exceed 800mm.

PACKAGING

SOUND INSULATION PERFORMANCE DATA
