Isosonic Soundproofing

Soundproof to regulation E using Isosonic hangers

Where you are required to soundproof a house when converting it into a number of flats, for example a Victorian property. This is most likely to be the ideal choice for you.

Calculate your sound proofing materials requirement by clicking here removing your ceiling:

Calculate your sound proofing materials requirement by clicking here retaining your ceiling:

The key features of this solution are that :-

a) Site tested sound insulation performance is far in excess of regulation E test requirements

b) You are best to retain the existing lathe and plaster or plasterboard ceiling ( as this adds to the soundproofing of the solution).

c) Minimise ceiling height loss a total drop from the ceiling of just 82mm

d) Minimal work on floor- just laying acoustic mat (6mm thick)

e) It can be part of a 1-hour fire system in common with all our solutions (building control often prefer substituting the 12.5 mm layer with a 12.5 mm fire check board) if installed correctly. See our Acoustic & Fire Testing page for more information.

The ISOSONIC TIMBERFLOOR provides safeguards against failure with 'pre completion testing'.

Ceiling Solution 1 - Isosonic Type C hangers System.

• Site tested performance far in excess of test requirements
• Can be 1 hour fire proof, with 12.5 mm fire line board
• Simple installation reducing workmanship errors
• Integral flanking sound insulation, eliminating difficult edge strips
• Detailed installation for floor, ceiling, down lighters and partitions- aiding the builder and specifier

Site test performance comparable to R.D. Standards

• A high performance, low cost and simple to install system.
• Provides a unique integral barrier to flanking sound transmission which is the predominant cause of test failures.
• Soundstop Acoustic 6mm Mat is suitable for the direct application of timber and laminate floors without a board platform.

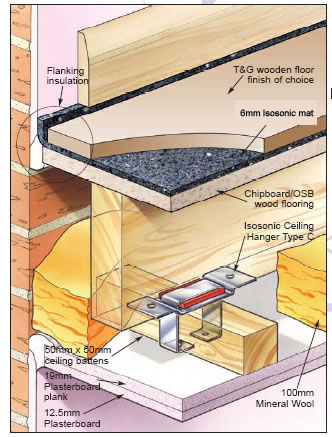

Below shows a the cross section of ceiling left in place. The void between the old ceiling and new plasterboards is filled with our easy fit slab wool.

Other Possible Hanger Options

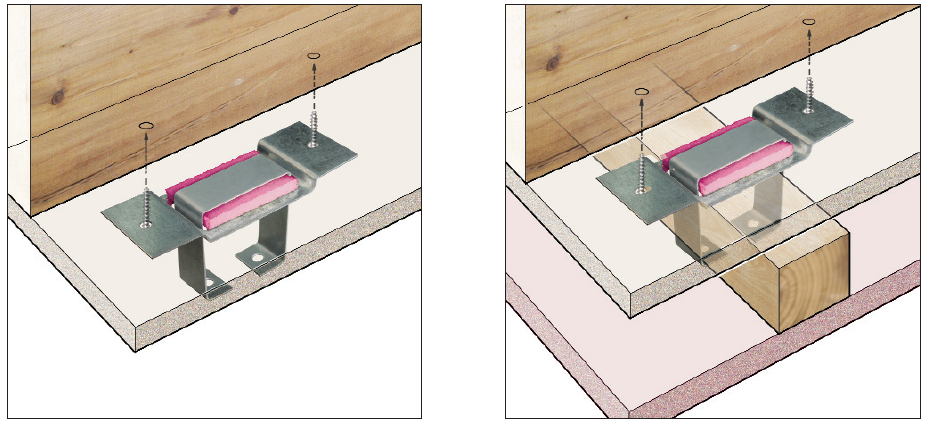

Ceiling Hanger type A For minimal loss in ceiling height 5mm lowering of ceiling	Ceiling Hanger type B For adjustable ceiling height Hangers can be made to suit the exact ceiling level requirements	Ceiling Hanger type C For minimal loss in ceiling height Allows the new sound insulating fire protective ceiling to be installed without the removal of the existing ceiling

Calculate Your Requirements

Isosonic Timber Floor - Ceiling Retained

Isosonic Timber Floor - Ceiling Removed

Download Fitting Instructions

Isosonic Ceiling Hangers

a) The number of ceiling hangers required per square metre of floor will depend on the geometry of the room. Regular rectangular rooms require approximately 2.5 hangers per square metre of floor area.

b) Spacing of the ceiling hangers should not exceed 800mm.

Packaging

Product	Packaging
Isosonic Ceiling Hangers	Boxes: 100 pieces per box.
6mm Acoustic Mat	Rolls: 1.0m x 10m = 10m² Weight per roll: 36kg

Sound Insulation Performance Data

	Dntw + Ctr Airbourne Sound	Lntw Impact Sound
Regulation New build	45 dB minimum	62 dB maximum
Regulations Refurbishment	43 dB minimum	64db maximum
Type C Hangers (Average 30 tests)	50 dB minimum	57 dB maximum
Any one single test	47 dB minimum	60 dB maximum
18mm Chipboard over Iso rubber Base	50	56
Laminate floor over 18mm chipboard over Iso rubber Base	51	54

N.B. The Isosonic Timber Floor is not an official R.D. but has been tested to similar standards.
